The F-16 Fighting Falcon is one of the most iconic and widely used fighter aircraft in the world. Initially developed by General Dynamics (now part of Lockheed Martin) for the United States Air Force, it was designed to be a cost-effective, versatile, and highly maneuverable aircraft. Its original role was focused on air superiority during daylight operations, but over time, it has evolved into a multirole fighter capable of performing a variety of missions, including ground attack, air-to-air combat, and reconnaissance.

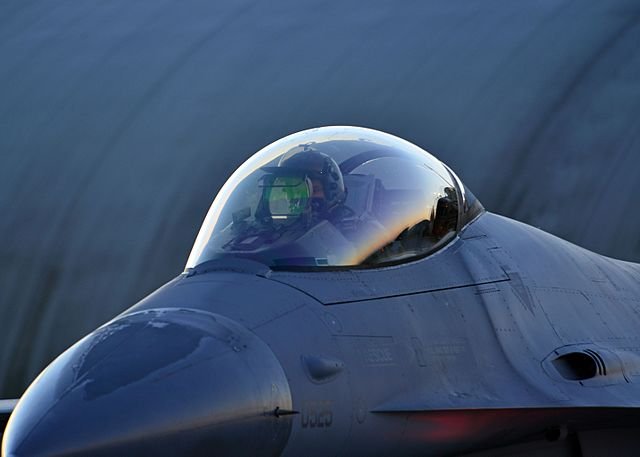

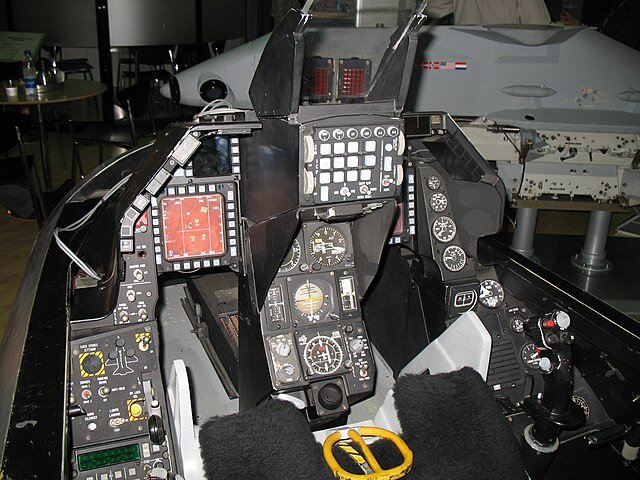

The F-16’s design is known for its frameless canopy for improved visibility, a side-mounted control stick (which allows pilots to fly the aircraft in higher G forces), and a high thrust-to-weight ratio, making it very agile in the air. The aircraft is also equipped with advanced avionics and weapons systems, allowing it to operate in all weather conditions.
Over 4,600 F-16s have been produced, and the aircraft has been widely exported to many countries around the world. It has seen action in numerous conflicts, including the Gulf War, Iraq War, and more. Its versatility, cost-effectiveness, and ongoing upgrades have kept the F-16 in service with the USAF and many other air forces globally.
The F-16 Key Features:
Cropped-Delta Wing and Aerodynamic Innovations
A delta wing is triangular in shape, resembling the Greek letter delta (Δ). It became popular during the Jet Age for high-speed subsonic and supersonic flight due to its unique aerodynamic and structural advantages.
Blended wing Body (BWB)
A blended wing body (BWB) is an aircraft design where the wings and fuselage are seamlessly integrated, with no clear dividing line between them. This design reduces drag by minimizing the form drag typically seen at the wing-body junction. The BWB may feature a wide airfoil-shaped body that generates lift, reducing wing size and drag. It can be used in both aircraft and underwater gliders, and may or may not be tailless.
Underslung Air Intake with Splitter Plate
To power its single turbofan engine, the F-16 uses a fixed-geometry, underslung air intake. The addition of a splitter plate helps ensure consistent airflow into the engine, enhancing performance and reliability.
Tri-Plane Empennage with Stabilator Tailplanes
The F-16’s tail section features a conventional tri-plane empennage design, with all-moving horizontal “stabilator” tailplanes that allow for precise control during high-G maneuvers, contributing to the aircraft’s agility in both combat and training scenarios.
Ventral Fins for Stability
Two ventral fins are placed beneath the fuselage, just aft of the wing’s trailing edge, adding stability during flight and preventing unwanted yaw or roll, especially during high-speed or high-performance maneuvers.
Tricycle Landing Gear Configuration
The F-16 is equipped with a tricycle landing gear configuration, with the aft-retracting, steerable nose gear positioned just behind the inlet lip. This design facilitates smooth takeoffs and landings, even in challenging conditions.
Aerial Refueling and Other Practical Features
The aircraft includes a boom-style aerial refueling receptacle located behind the canopy, allowing it to extend its operational range. Additional features like split-flap speedbrakes and a tailhook mounted beneath the fuselage enhance its operational flexibility.
Advanced Fuselage Fairings for Additional Equipment
Later models of the F-16 feature a long dorsal fairing along the fuselage’s spine, providing space for additional avionics or fuel tanks, ensuring the aircraft remains flexible and adaptable for modern combat scenarios.
